Stelar 145 Brass

Download all 3D models for this product.

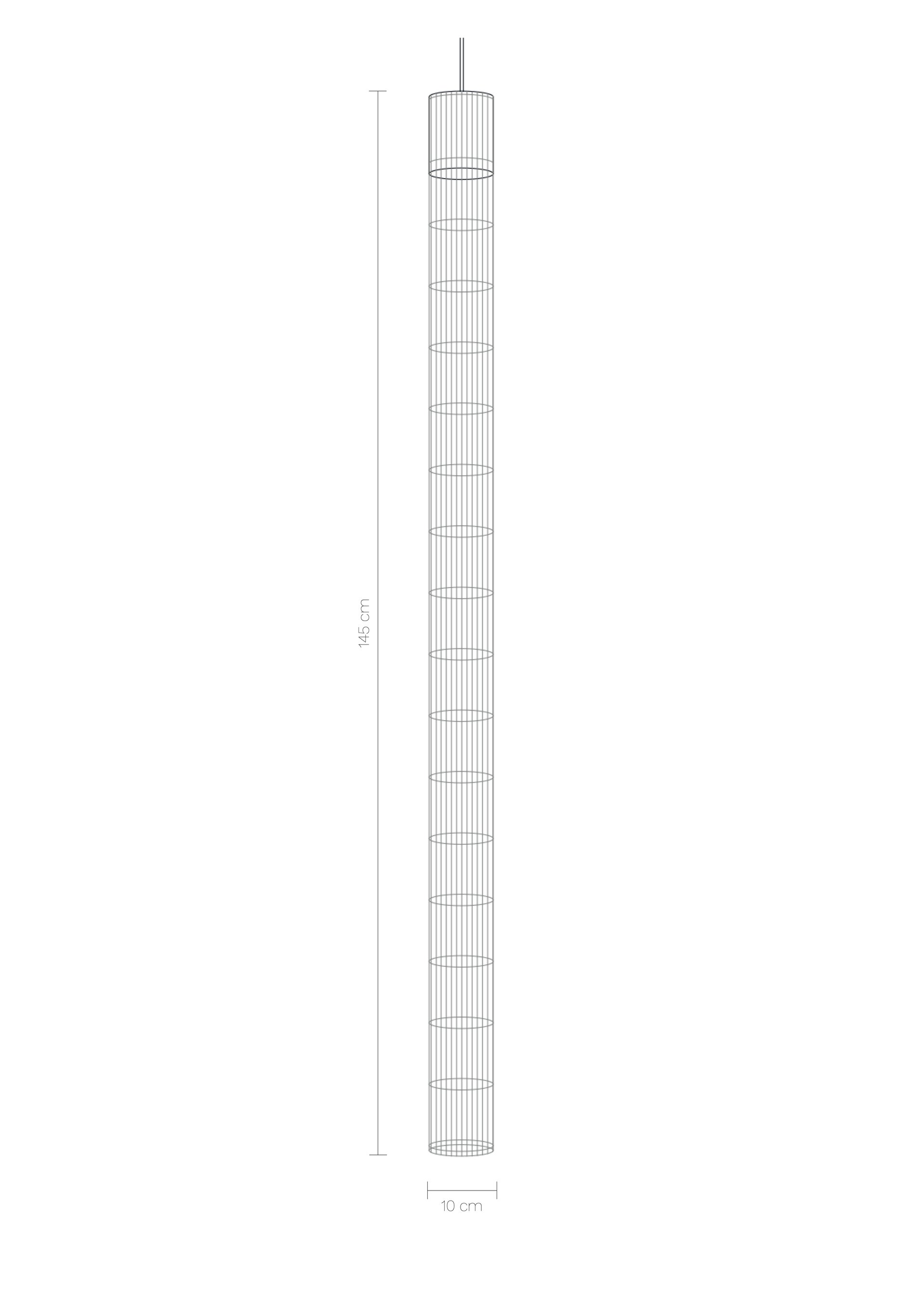

• Width / Diameter: 10cm
• Height: 145cm

Here you will find declarations of conformity and instructions for this model.

Karty techniczne

• STELAR BRASS_CE_DEKLARACJA ZGODNOŚCI UE
• PODSUFITKA PÓŁKULA_INSTRUKCJA MONTAŻU
• HEMISPHERE CEILING ROSE_INSTALLATION INSTRUCTIONS
• STELAR SPECYFIKACJA TECHNICZNA (PL EN)

• Light source: integrated LED
• LED power: 24 W
• LED CRI≥ 90
• Luminous flux: 2400lm
• Light colour: 3000K
• Standard suspension height: 120cm

Stelar is a vertical LED pendant that combines an aluminium body with an outer metal mesh shade. Its slender, cylindrical form suits entrance halls, stairwells and interiors with high ceilings. Three heights allow you to use a single pendant or combine several, choosing their sizes and suspension heights to suit the space.

Materials and construction

• aluminium body
• outer metal mesh shade
• two finishes: Brass, with a warm tone, and Stainless Steel, with a metallic sheen
• made and assembled in our workshop in Wrocław

Light source

Integrated LED lighting rated at 24 W, with a colour temperature of 3000 K, CRI ≥ 90 and a luminous flux of 2400 lm. These specifications apply to all sizes and both finishes.

The fitting uses an external LED driver. The standard version is not dimmable.

Casambi or DALI control and dimming are available at an additional cost. These configurations must be agreed in advance and are quoted individually.

Models and dimensions

Stelar is available in three heights. Each size comes in both Brass and Stainless Steel finishes.

The heights shown refer to the fitting itself and exclude the suspension.

Ceiling canopy and installation

A black aluminium ceiling canopy in a hemisphere shape is included.

The fitting hangs vertically from steel power cables with a transparent sheath. The standard cable length is 120 cm.

Designed for indoor use, the fitting has an IP20 rating and operates on 220-240 V. We recommend installation by a qualified electrician in accordance with the supplied instructions.

Customisation

The suspension length can be tailored to your project, and several pendants can be arranged on a shared ceiling canopy. We can help select the number and sizes of fittings and plan their positions and suspension heights.

For changes to the standard configuration, contact us when ordering to agree the details and pricing.
