Novana Steel

Download all 3D models for this product.

• Width / Diameter: 117cm
• Height: 60cm
• Weight:7.5kg

Here you will find declarations of conformity and instructions for this model.

Karty techniczne

• NOVANA_STEEL_TECHNICAL_SPECIFICATION
• NOVANA_STEEL_SPECYFIKACJA_TECHNICZNA

• Light source: integrated LED
• LED power: 96 W
• LED CRI≥ 95
• Luminous flux: 9600lm
• Light colour: 3000K
• Dimmable: yes
• Standard suspension height: 120cm

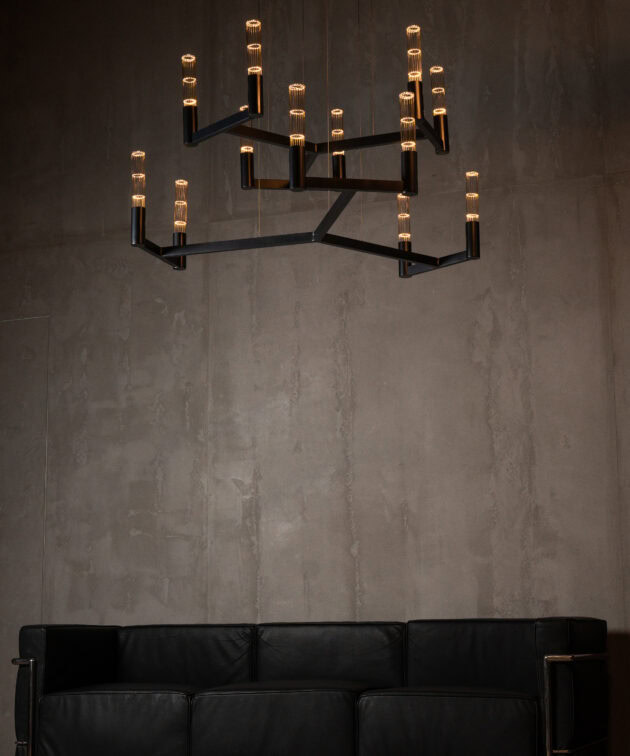

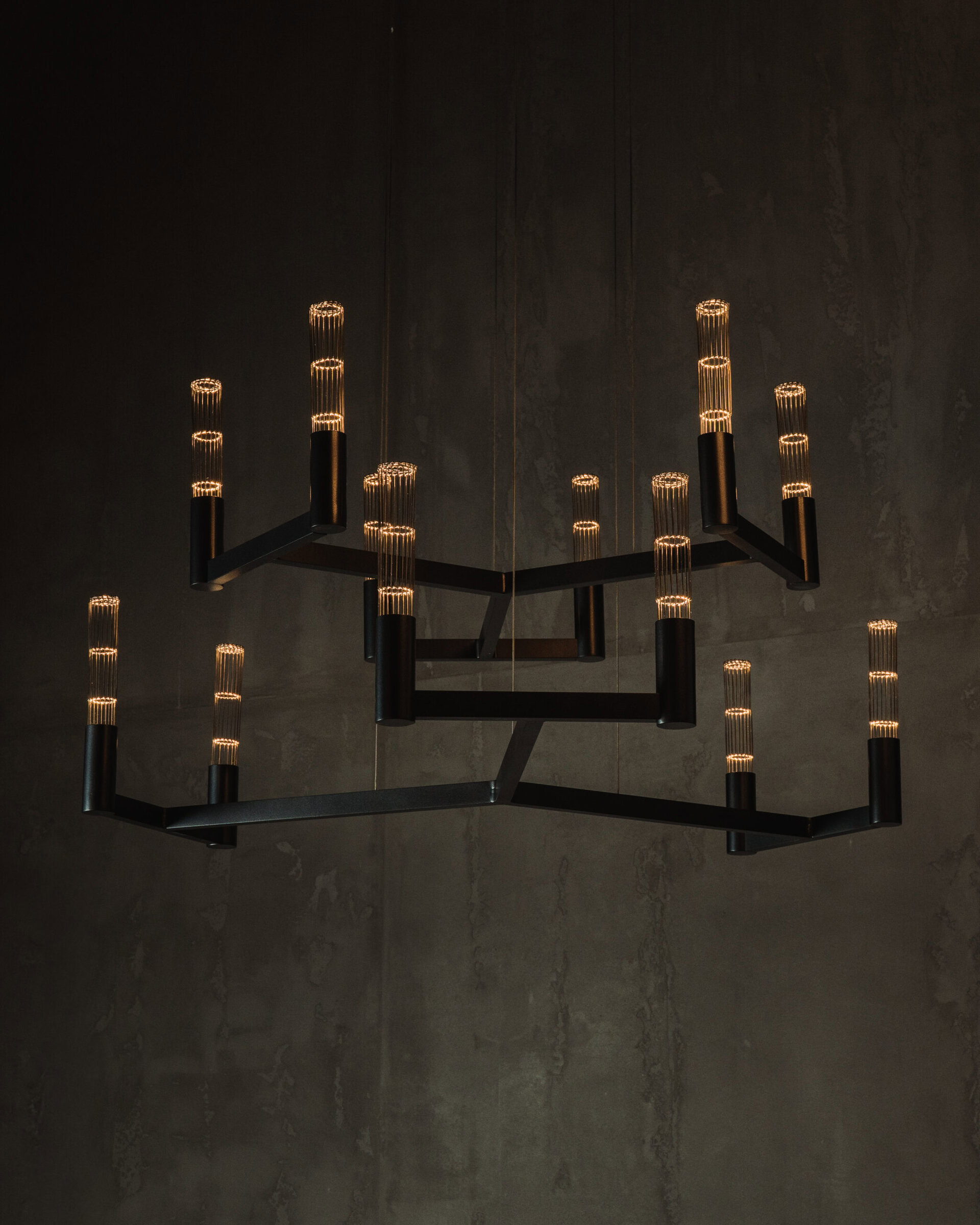

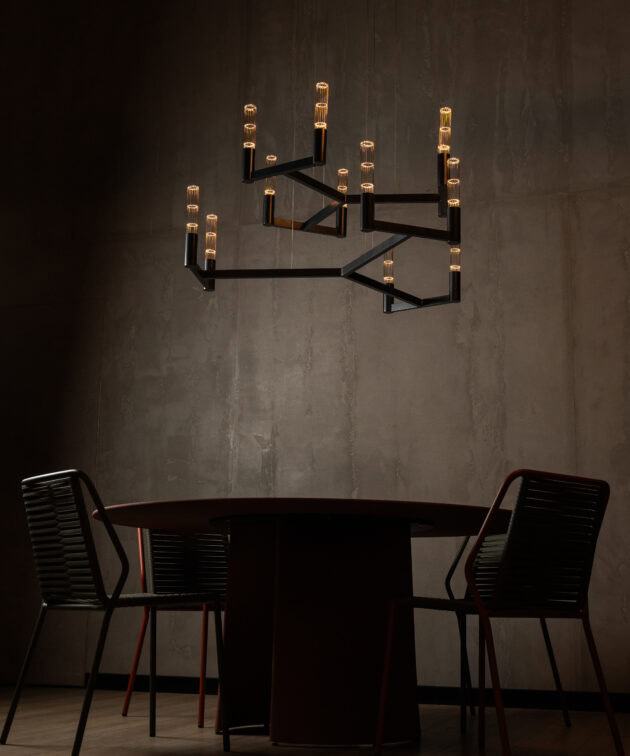

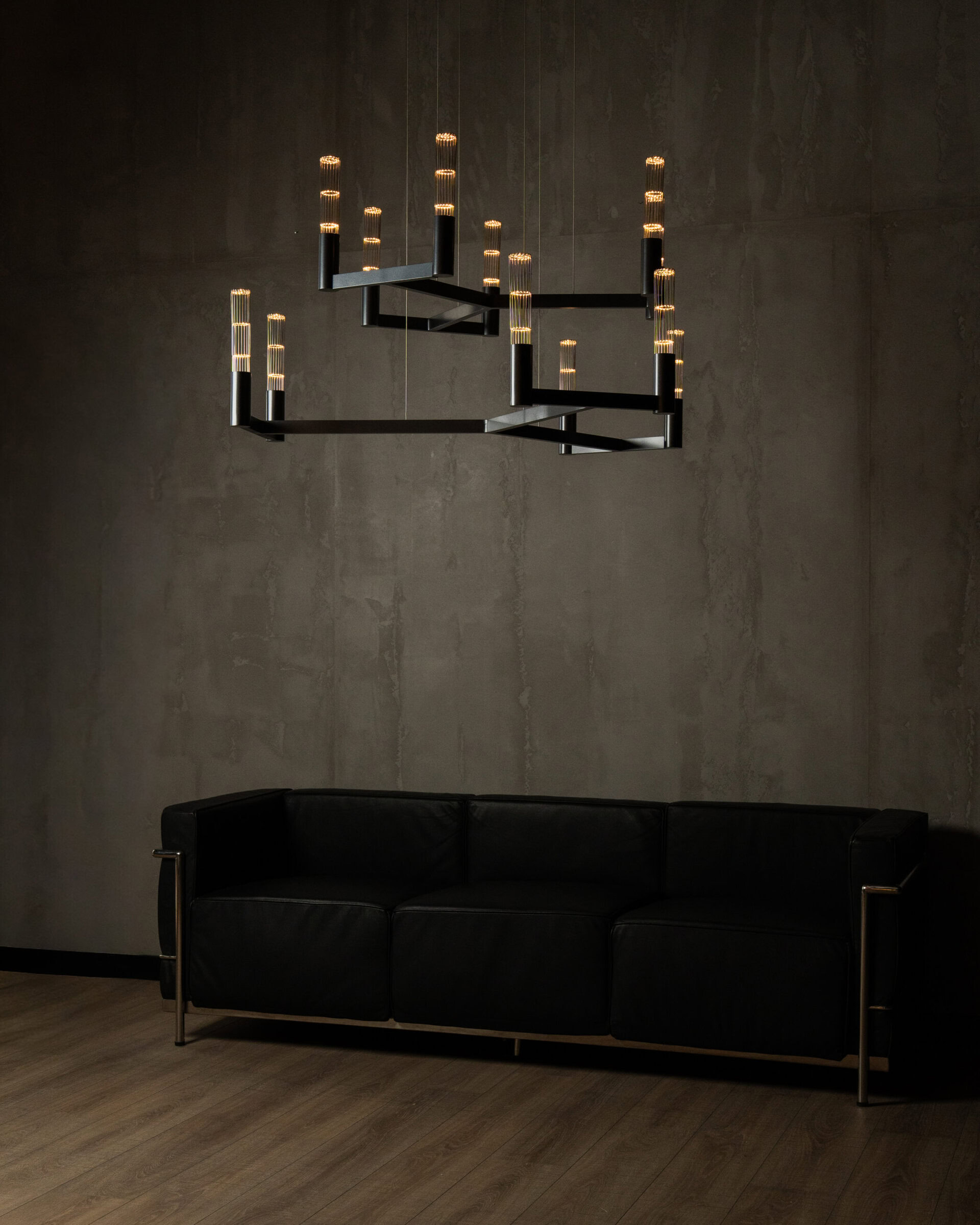

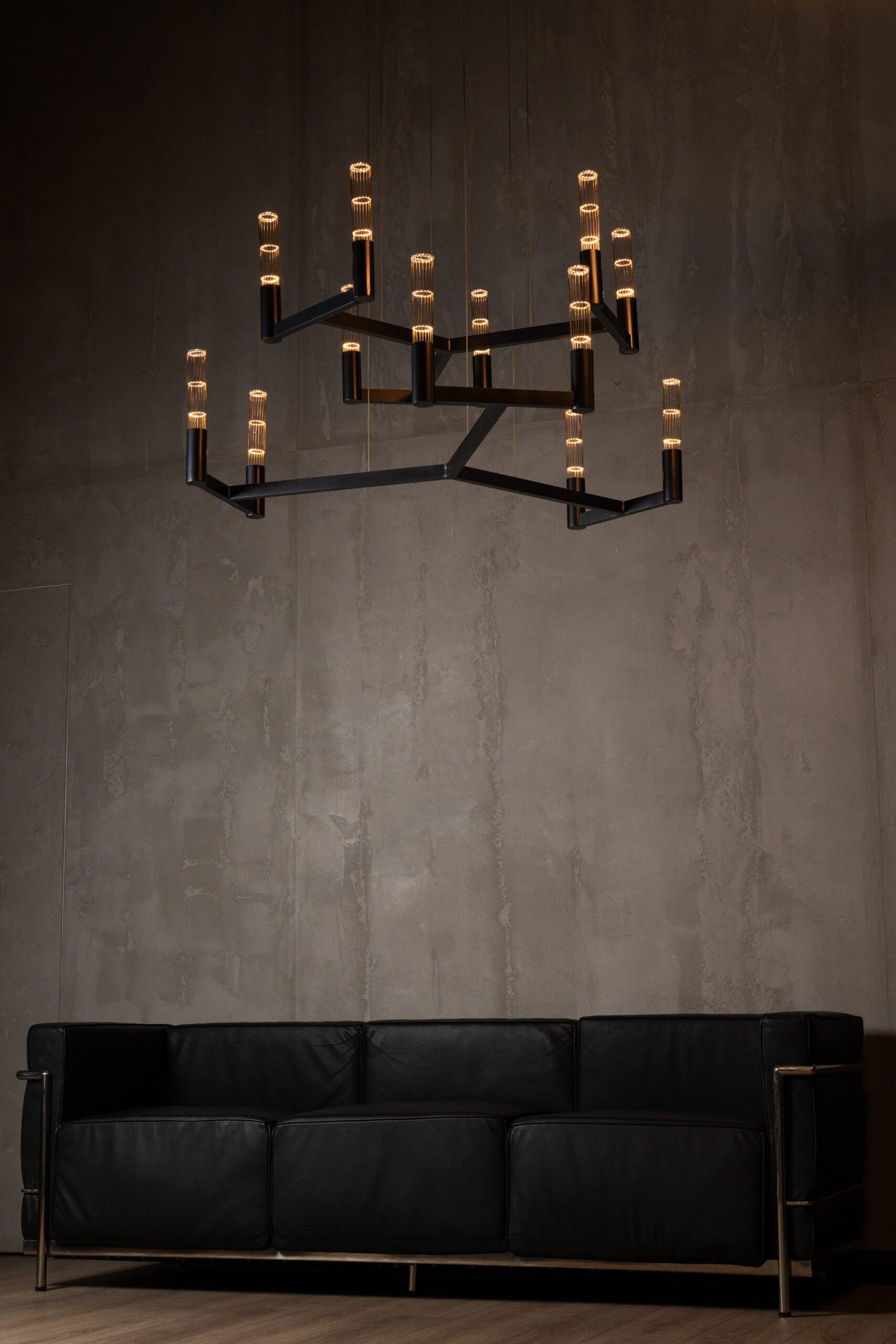

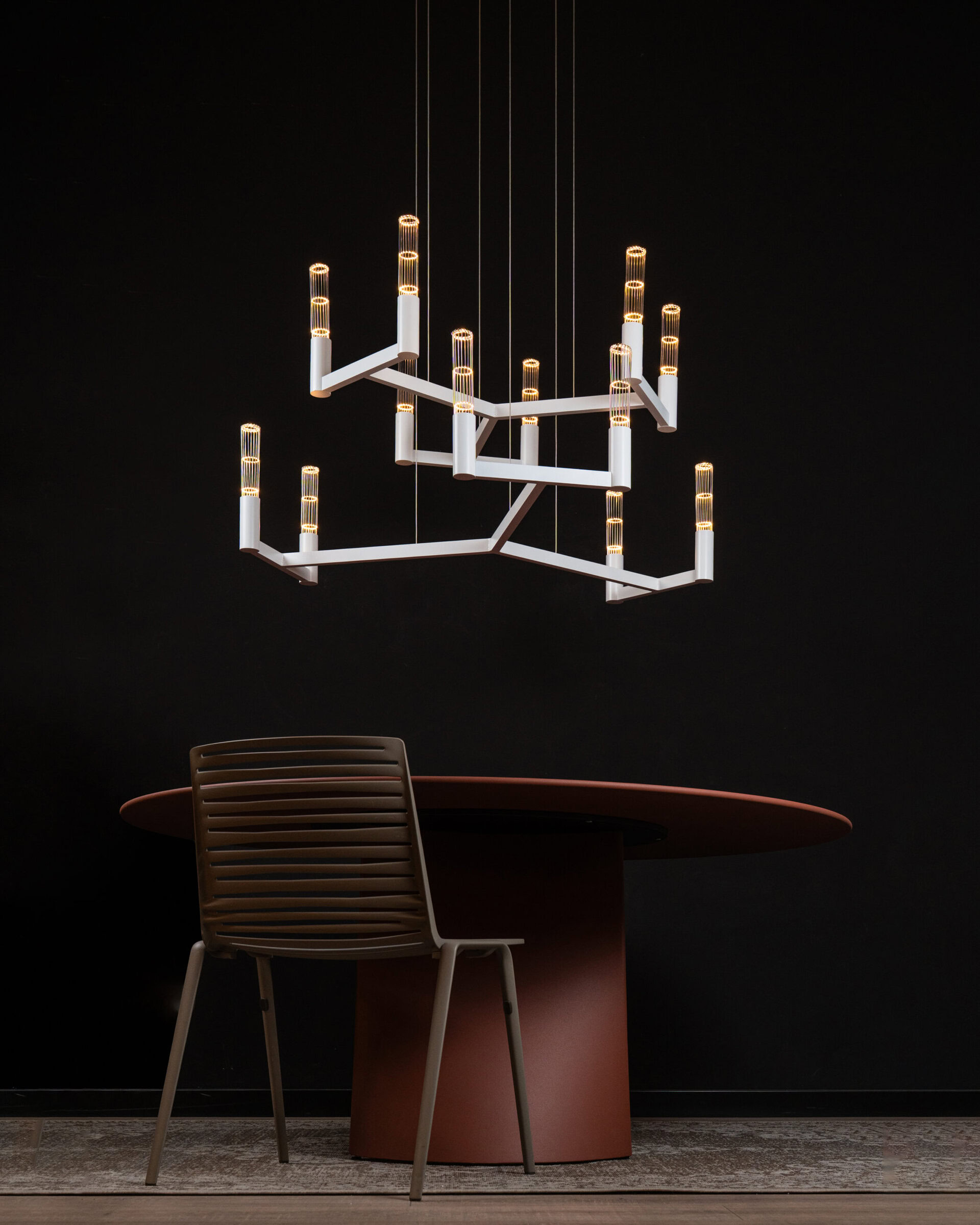

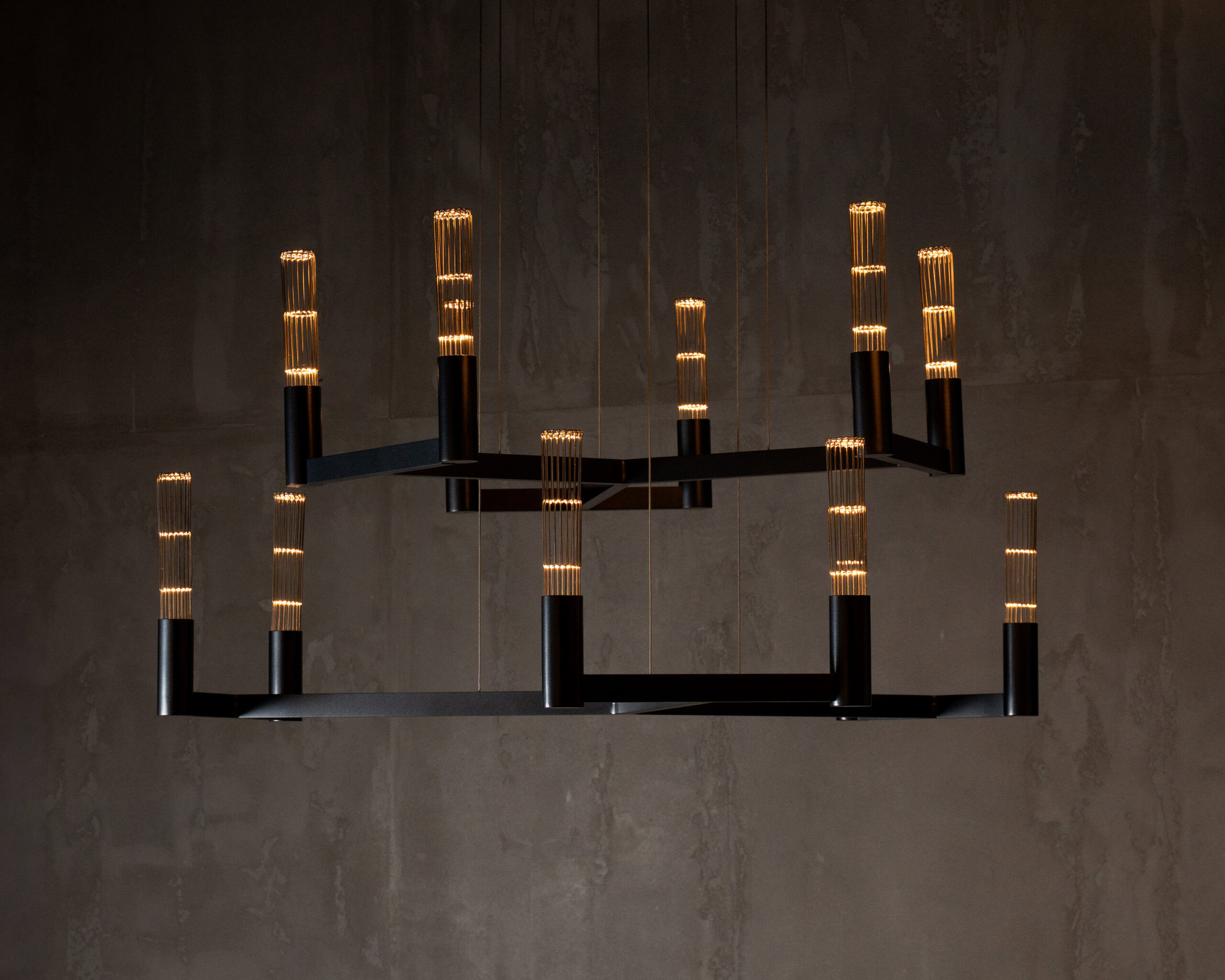

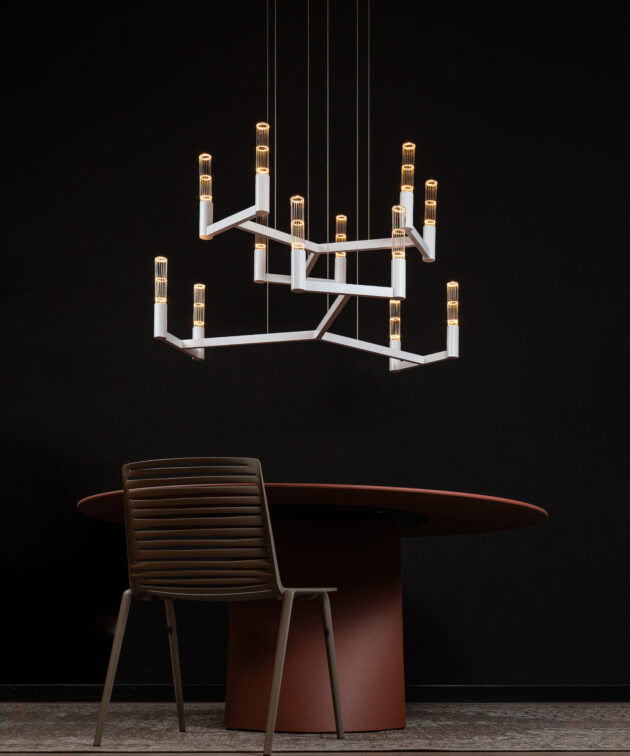

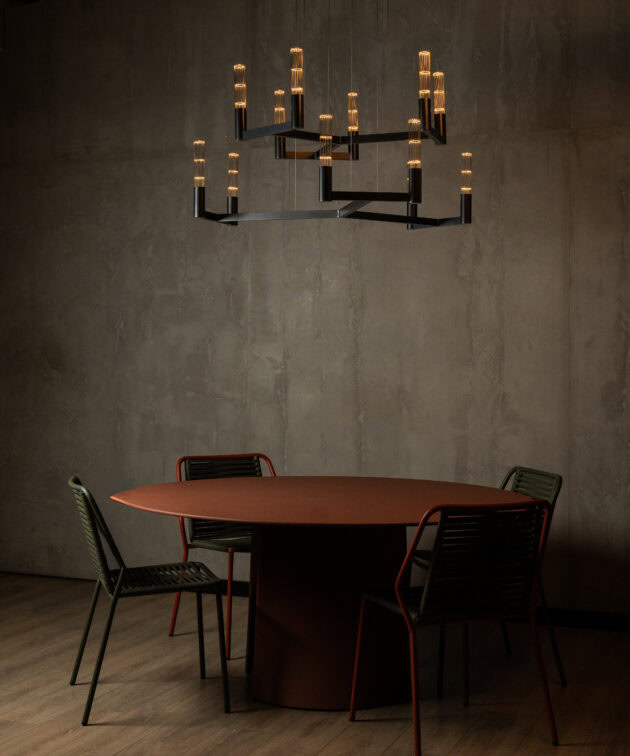

Novana Steel is an LED pendant that combines aluminium arms with cylindrical stainless steel mesh shades. Two modules of different diameters create a layered form, while the mesh adds texture to the design. The fitting suits larger interiors, including lobbies, restaurants, lofts, entrance halls and open commercial spaces.

Materials and construction

• two modules with aluminium arms shaped like a T

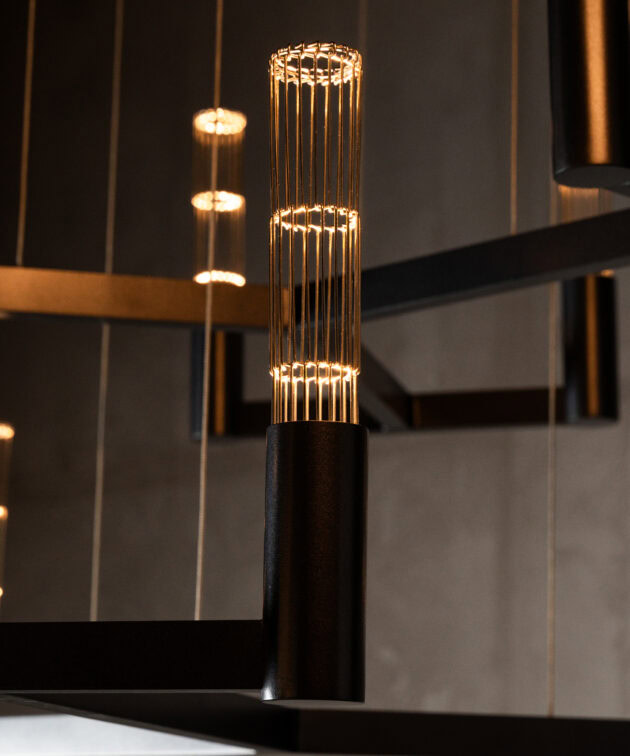

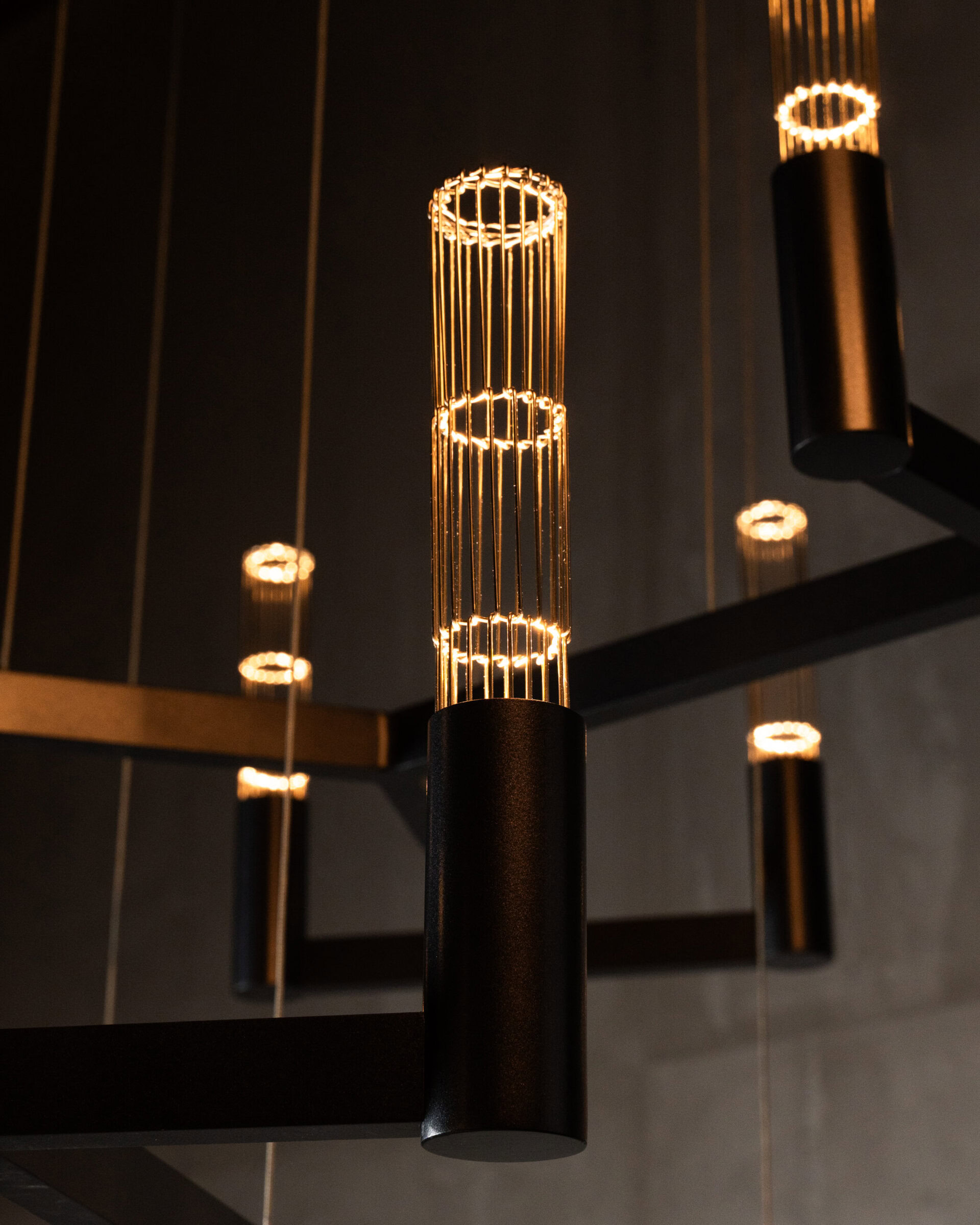

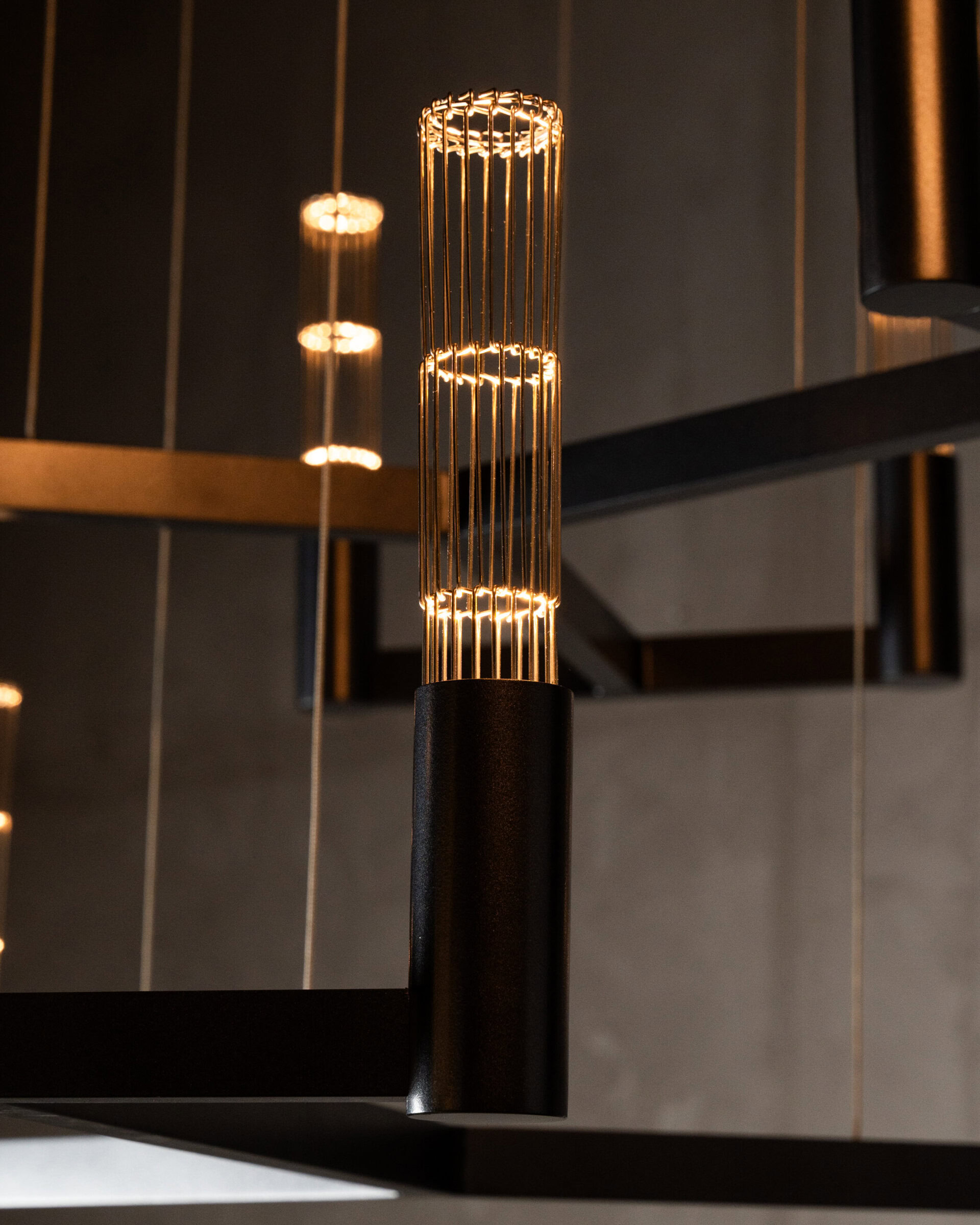

• cylindrical shades made from stainless steel mesh
• aluminium frame colour selected from our palette when ordering
• made by hand in our workshop in Wrocław

Light source

Integrated LED lighting with 12 modules delivering a total power of 96 W. Colour temperature: 3000 K. Colour rendering: CRI ≥ 95. The luminous flux of the fitting is approximately 9600 lm.

The fitting supports dimming when used with compatible controls. An LED driver is included.

Dimensions and configuration

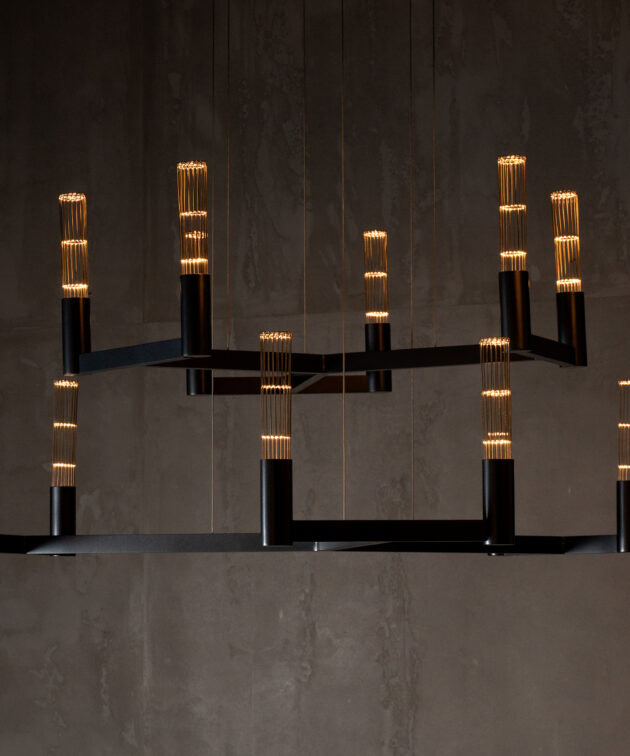

Novana Steel consists of two modules of different diameters:

Each module is 28 cm high, and the complete fitting weighs approximately 7.5 kg.

The overall height depends on the relative positions of the modules and the suspension lengths. These can be adjusted during installation.

Ceiling canopy and installation

The fitting comes with a round aluminium ceiling canopy.

The structure is suspended at six points on steel cables, allowing the hanging height to be adjusted. The power cables have a transparent sheath. The standard cable length is 120 cm.

Designed for indoor use, the fitting has an IP20 rating and operates on 220-240 V. We recommend installation by a qualified electrician in accordance with the supplied instructions.

Customisation

Choose the aluminium frame colour from our palette. The suspension height and relative positions of the modules can be adjusted to suit your project.

For changes to the standard configuration, contact us when ordering to agree the details and pricing.
